ecoTURBOMATIC (ECO)

TURBOMATIC ECO is commonly used in the applications where the climate conditions are varying between mild and moderate, and where heating of the concrete aggregates and water is only occasionally needed.

Typical applications

  • Medium scale ready-mix concrete batching plants in mild to moderate climate conditions

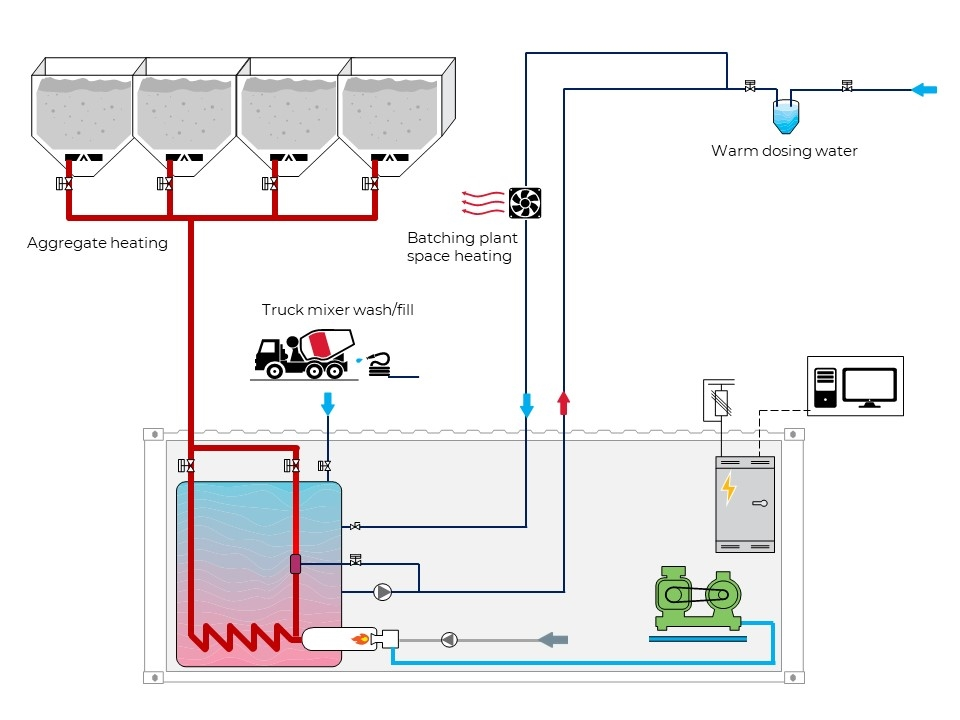

Main functions

  • Aggregate heating with TURBOgas or –steam
  • Generation of warm dosing water

Heating options

  • Heating of the concrete batching plant production facilities
  • Generation of warm wash water
  • Supply of warm water for filling the truck mixer saddle tank

ecoTURBOMATIC models

PME-ECO 500PME-ECO 750PME-ECO 1000

Capacity

500 kW750 kW1000 kW
Aggregates
50...350 kW

Water
150...450 kW
Aggregates
75...525 kW

Water
225...675 kW
Aggregates
100...700 kW

Water
300...900 kW

Powered with

Light fuel oil, biodiesel
50 l/h75 l/h100 l/h
Natural gas
50 m³n/h75 m³n/h100 m³n/h
Natural gas pressure min 0,8 bar (g)
Propane
20 m³n/h30 m³n/h39 m³n/h

Options

  • Fully integrated oil tank located inside TURBOcontainer (oil tank volume 4 000 l/20' container or 10 000 l/40' container); separated with firewall and equipped with all necessary safety etc. accessories
  • Combi models available for dual fuel operation: bio-diesel or light fuel oil/gas
  • Gas-burner for bio-gas, natural gas or propane
NOTE! Actual fuel consumption is significantly lower than rated consumption at max. load

Structure / Layout

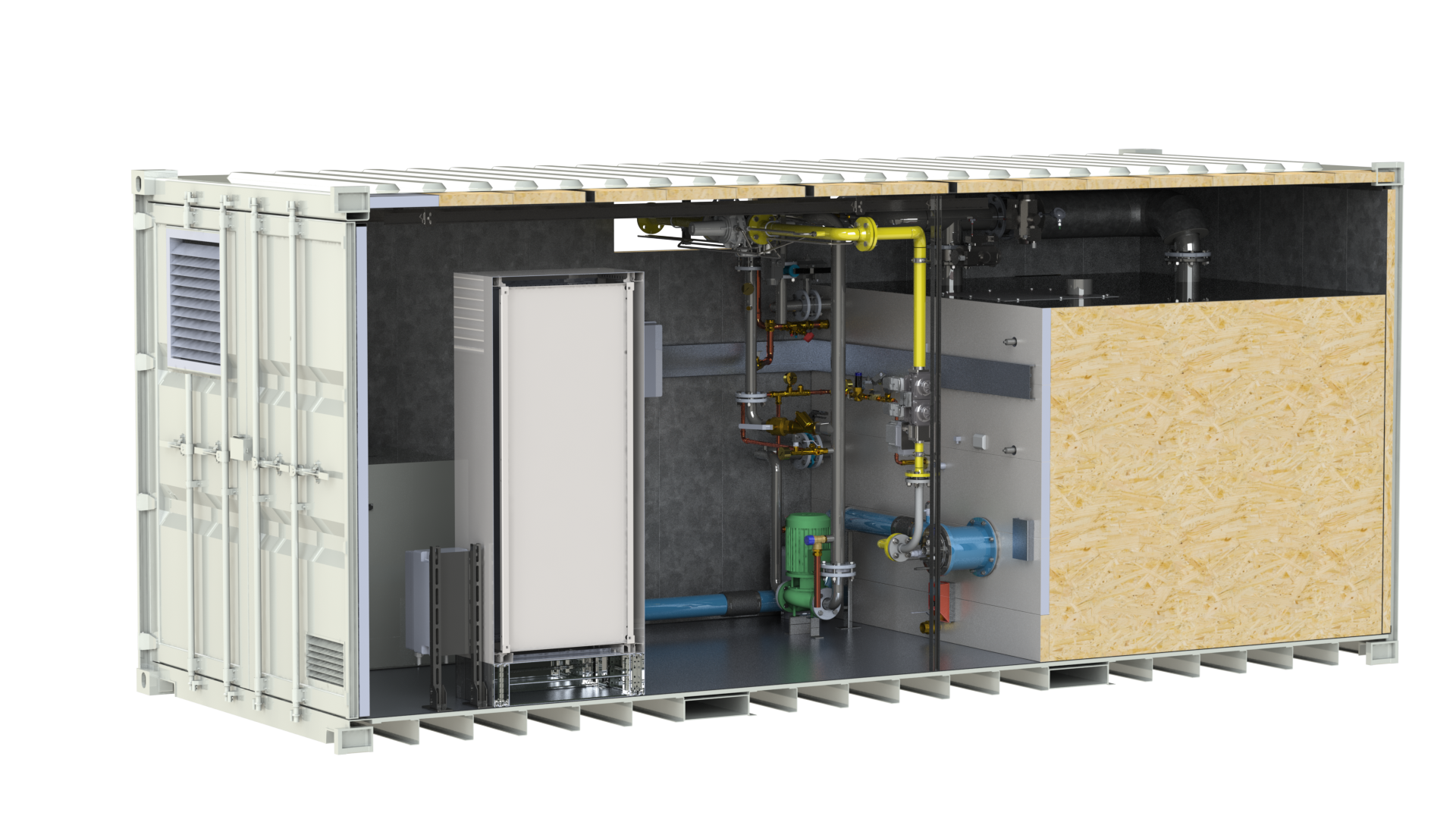

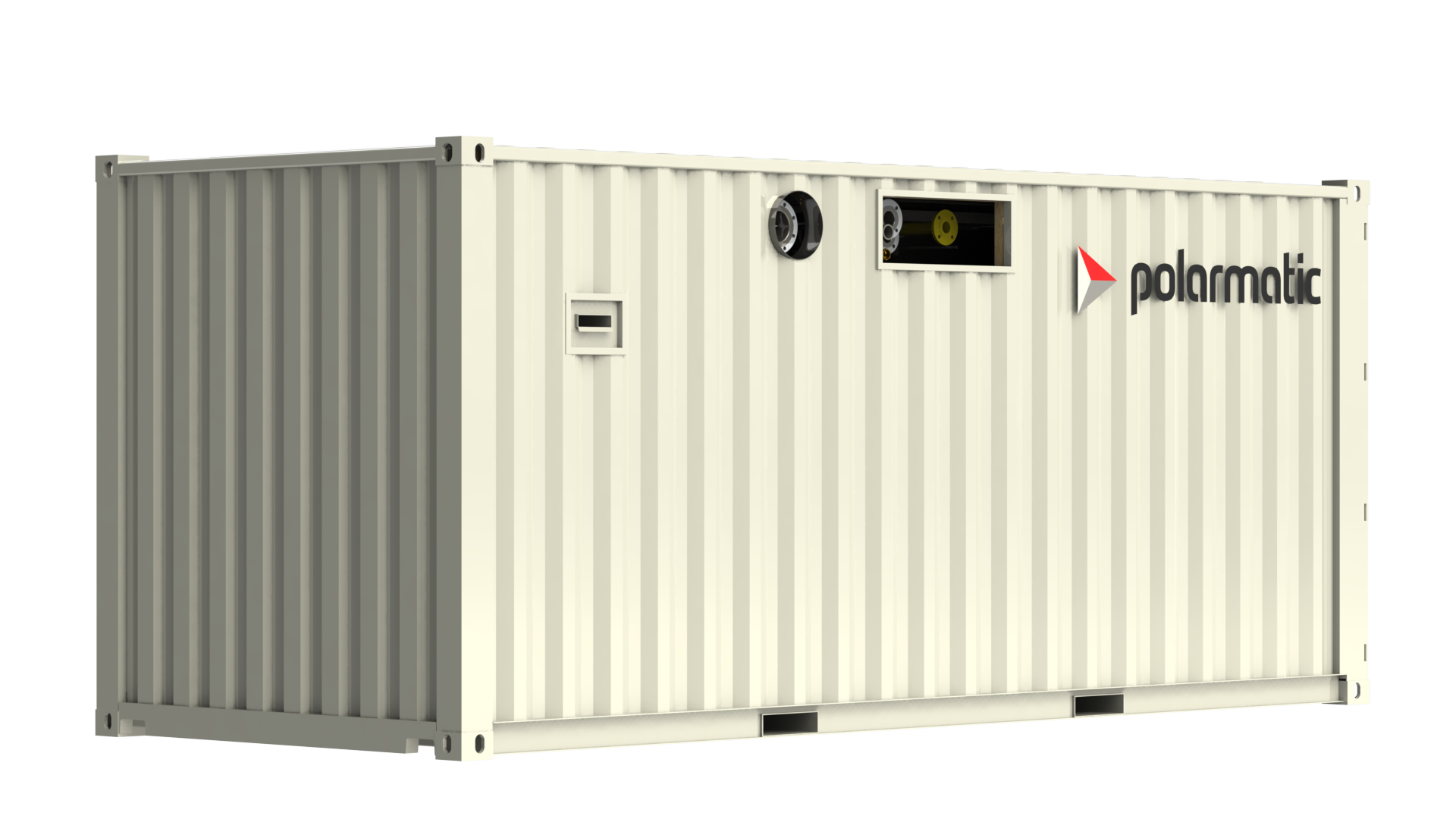

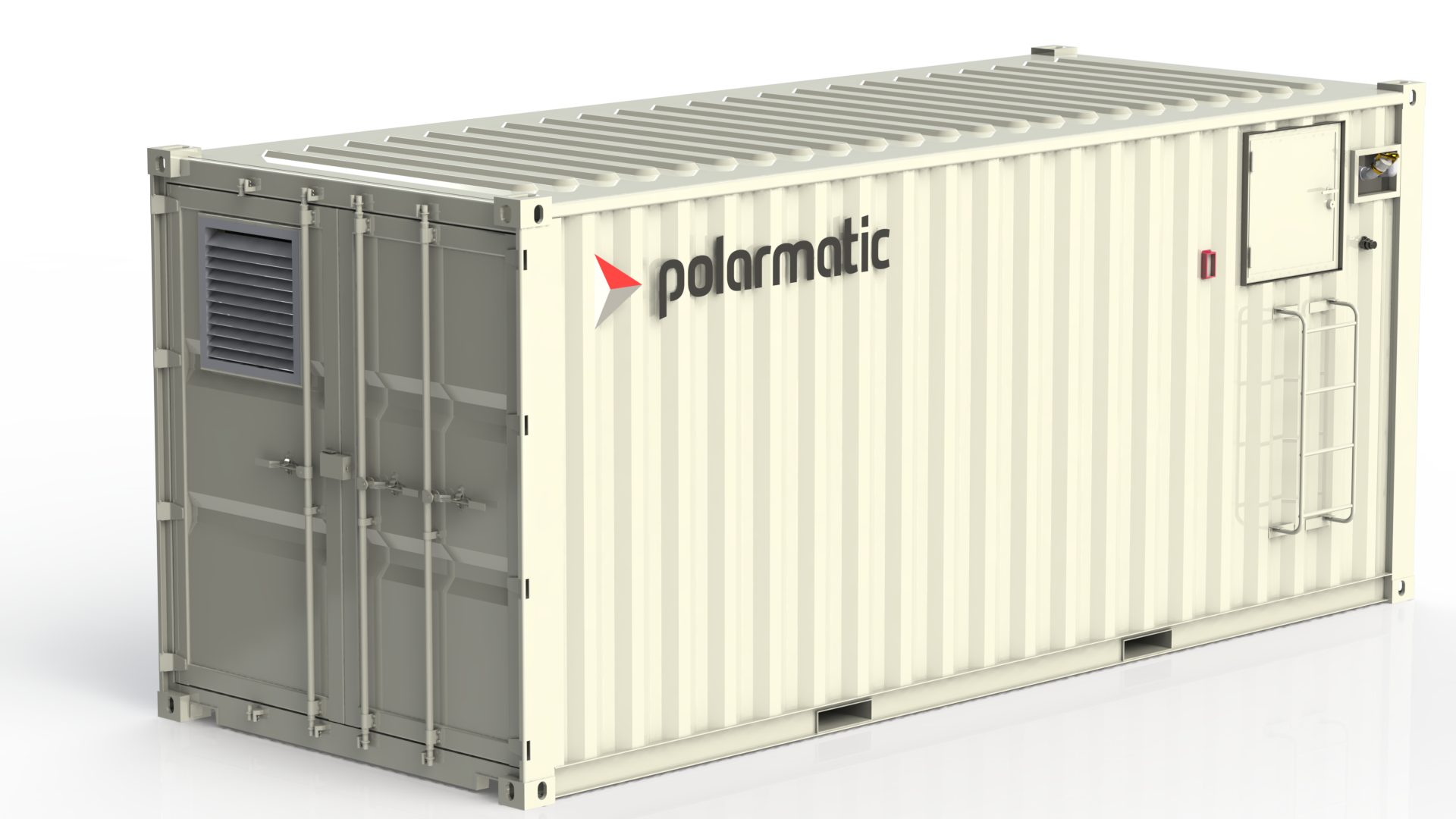

TURBOcontainer

  • Thermally insulated, for outdoor usage
  • Standard 20'(L 6050 x W 2438 x H 2592 mm) or 40' (L 12192 x W 2438 x H 2592 mm) container; also special containers as per customer requirements

Rack-mounted

  • For indoor installation
  • Rack dimensions vary depending on the capacity class (e.g. L 5000 x W 2120 x H 2400 mm); also special rack dimensions as per customer requirements
