TURBOMATIC TURBOsteam Generator (TSG)

Aggregate Heating Solution

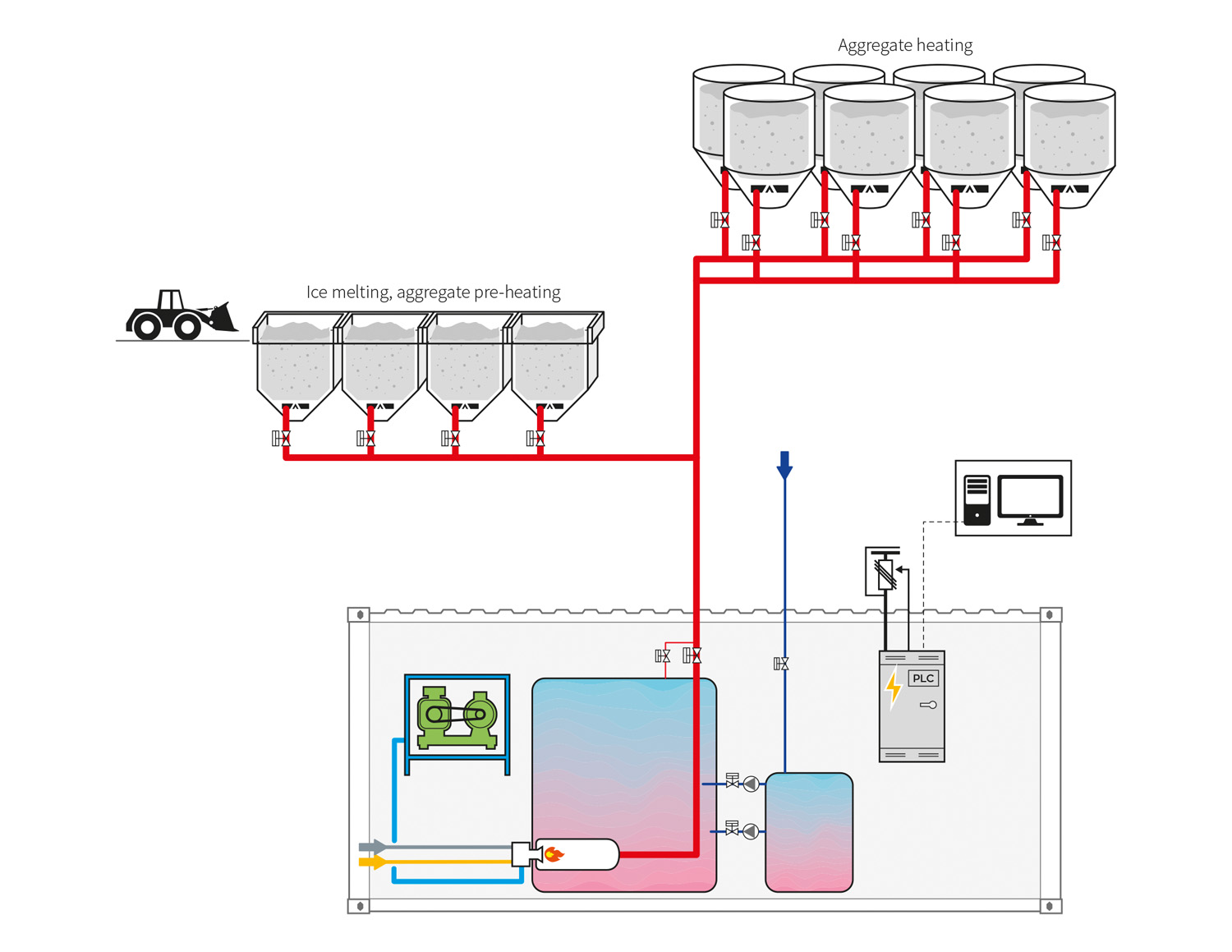

TURBOMATIC TURBOsteam Generator is a heating solution for applications where only heating of the concrete aggregates is needed.

TURBOsteam Generator is a proven solution in the extreme climate conditions and locations where high power or continuous 24/7 heating of the concrete aggregates is required.

Using TURBOsteam as heating media does not change moisture of the aggregates.

TURBOsteam Generator models

PME-TSG 300PME-TSG 500PME-TSG 750PME-TSG 1000PME TSG-1250PME TSG-1500PME TSG-2000PME-TSG 2500

Capacity

300 kW500 kW750 kW1000 kW1250 kW1500 kW2000 kW2500 kW

Powered with

Light fuel oil, biodiesel
30 l/h50 l/h75 l/h100 l/h125 l/h150 l/h200 l/h250 l/h
Natural gas
30 m³n/h50 m³n/h75 m³n/h100 m³n/h125 m³n/h150 m³n/h200 m³n/h250 m³n/h
Natural gas pressure min 0,8 bar (g)

Options

  • Fully integrated oil tank located inside TURBOcontainer separated with fire wall and equipped with all necessary safety etc accessories
  • Combi models available for dual fuel operation: bio-diesel or light fuel oil/gas
  • Gas-burner for bio-gas, natural gas or propane
NOTE! Actual fuel consumption is significantly lower than rated consumption at max. load

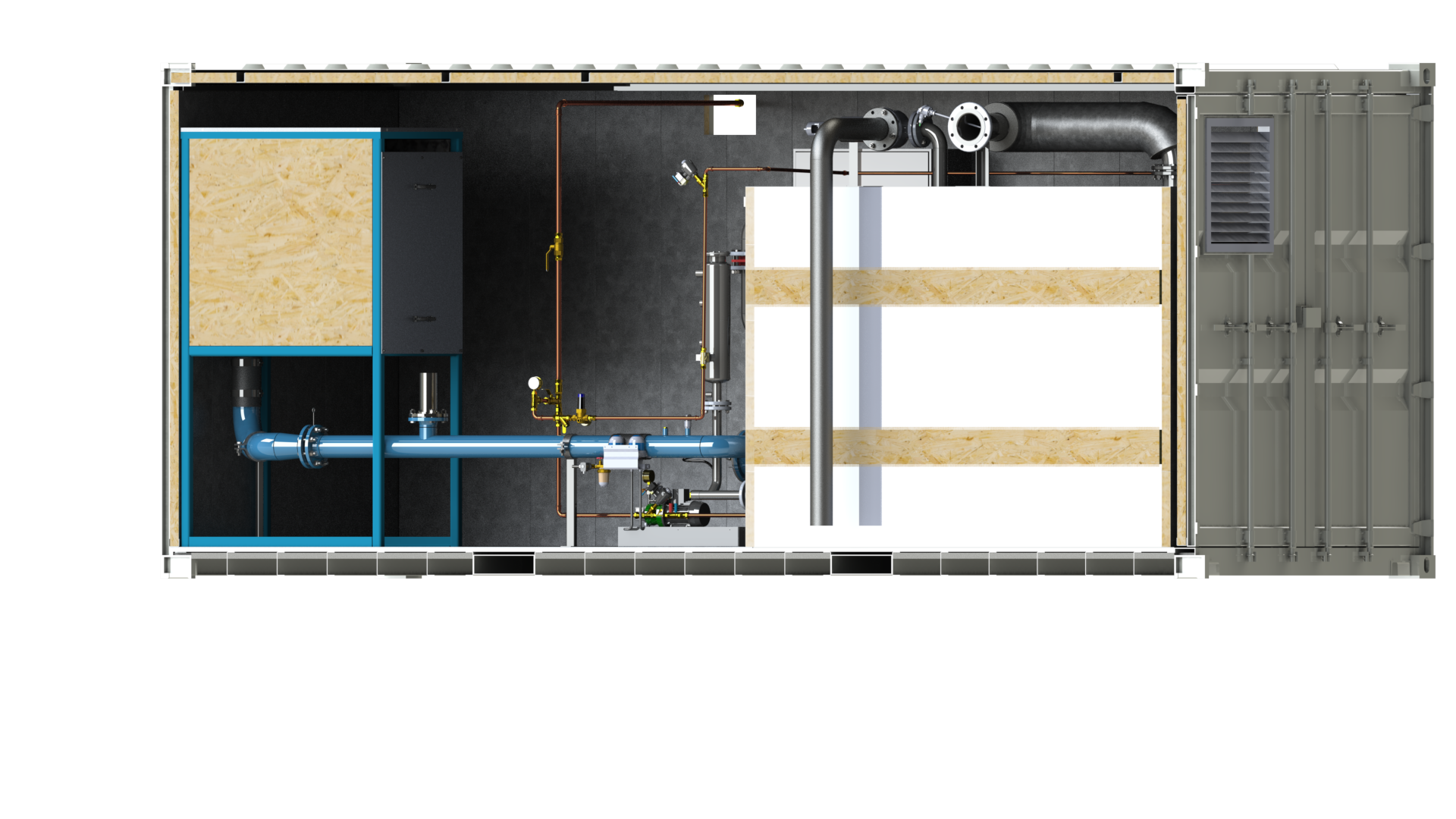

Structure / Layout

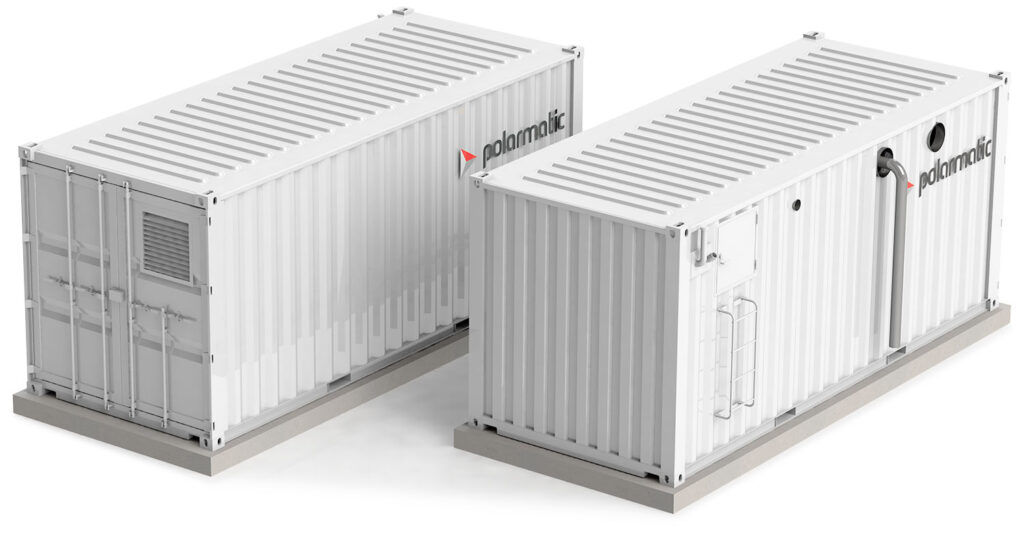

TURBOcontainer

  • Thermally insulated, for outdoor usage
  • Side door for easy access
  • Standard 20’ (L 6050 x W 2438 x H 2592 mm) also special containers as per customer requirements.

TURBOrack

  • For indoor installation
  • Rack dimensions vary depending on the capacity class (e.g. L 5000 x W 2120 x H 2400 mm); also special rack dimensions as per customer requirements are available
